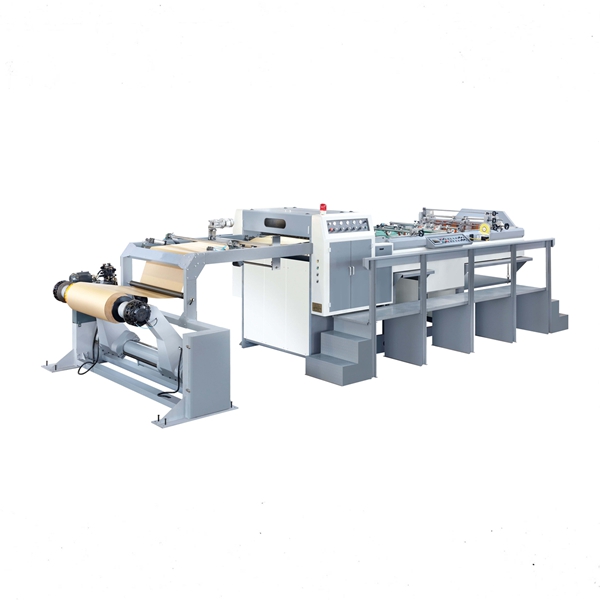

Roll To Sheet Cutting Machine Rotary Blade
More video check here !

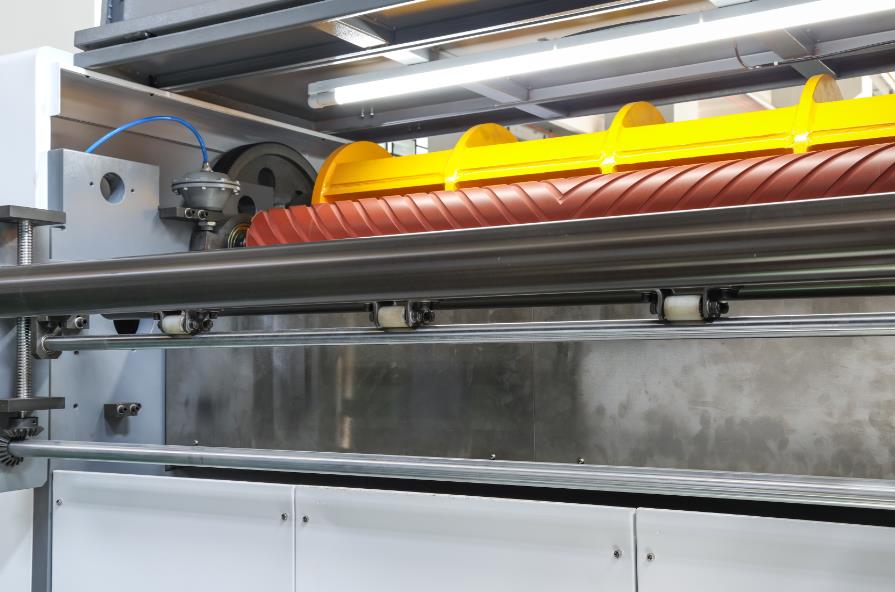

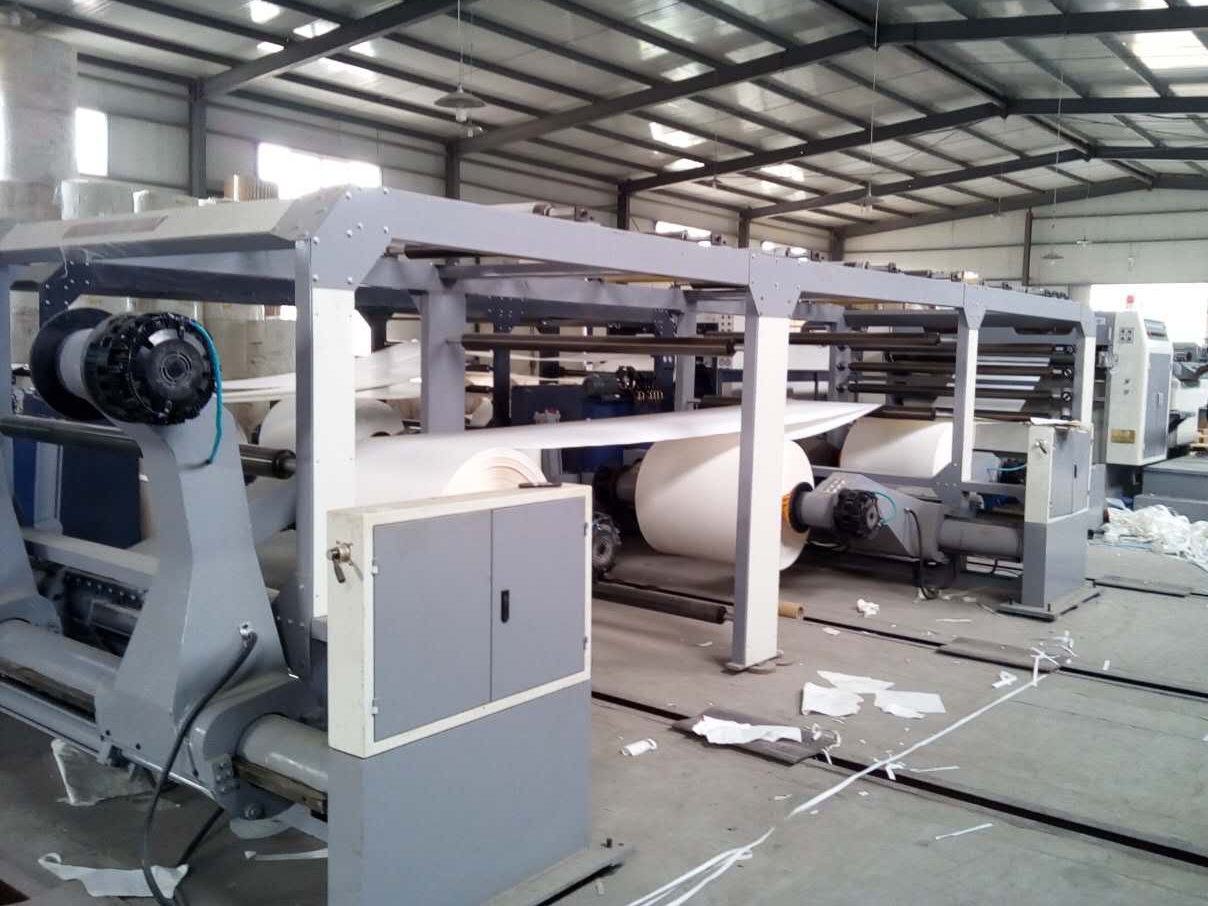

Sample Pictures:
Main Features:
The servo drive automatic rotary blade sheeting machine can adopt 1 roll to 4 rolls feeding loading stand. Chuck sizes are 3” 6” 12”.
It is suitable for horizontally and vertically cutting art paper, offset paper, kraft paper, copy paper and other roll materials .

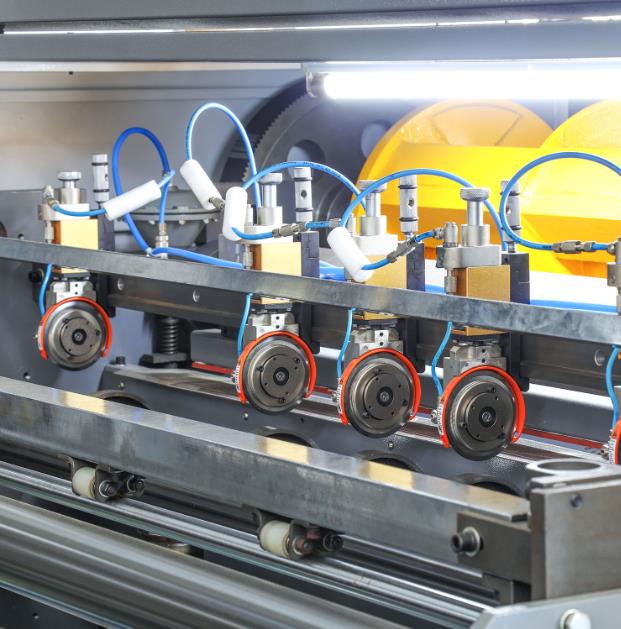

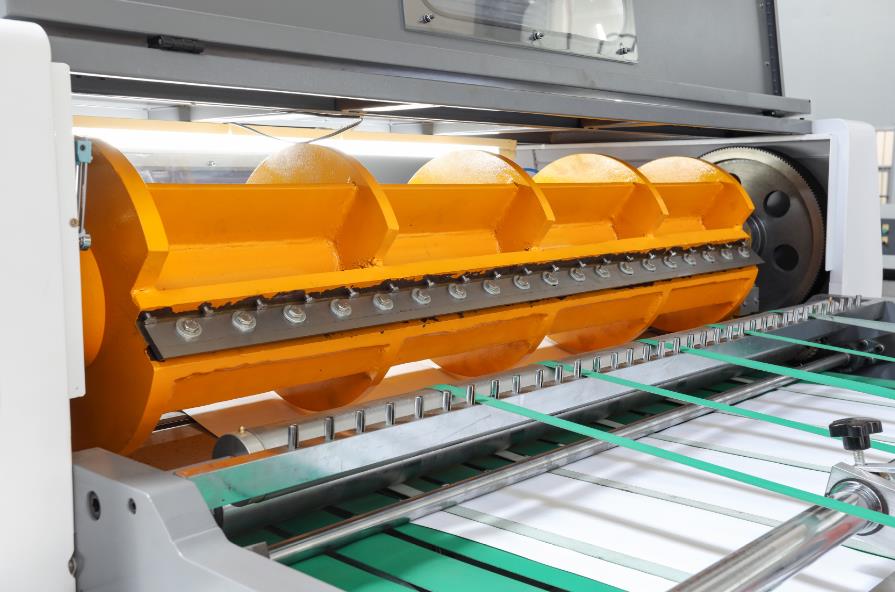

The cutting method is lower blade fixed, upper blade rotary cutting. It adopts FAG bearings and Tungsten steel sheeting blade, which makes the service life longer, more stable and more accurate. Three groups of automatic edge correction units are equipped as standard. It is easy to operate.
Details: customized is available
Main Technical Parameters:
| Model | D 1400 | D 1700 | D 1900 |
| Max. Unwind width | 1400mm | 1700mm | 1900mm |
| Max. Unwind Dia. | 1800mm | 1800mm | 1800mm |
| Paper Thickness | 40-550gsm | 40-550gsm | 40-550gsm |
| Cutting method | Lower blade fixed, upper blade rotary cutting | ||
| Max. cut speed | 200cuts/min | 200cuts/min | 200cuts/min |
| Max. meter speed | 180m/min | 180m/min | 180m/min |
| Cutting Length Range | 450-1200mm | 450-1200mm | 450-1200mm |
| Cutting Precision | ±0.5mm | ±0.5mm | ±0.5mm |
| Max. Pile Height | 1300mm | 1300mm | 1300mm |
| Slitting Knives | 3pcs | 3pcs | 3pcs |
| Voltage Request | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Air Request | 0.8Mpa | 0.8Mpa | 0.8Mpa |
| Machine Power | 32.2kw | 37.2kw | 47.2kw |
| Machine Weight | 14000kgs | 16000kgs | 18000kgs |
| Machine Size | 18000*4000*1900mm | 18000*4300*1900mm | 18000*4500*1900mm |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
Famous Brand Is Available For Us:

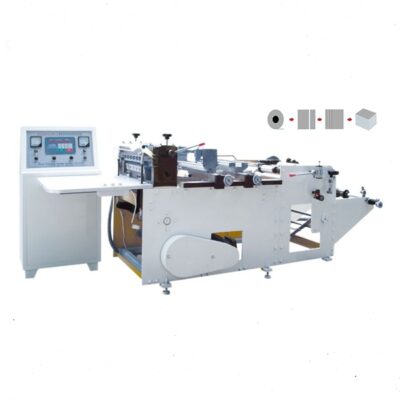

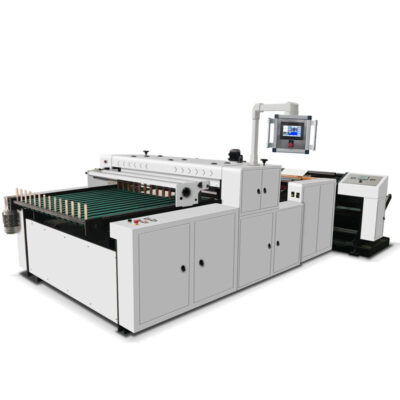

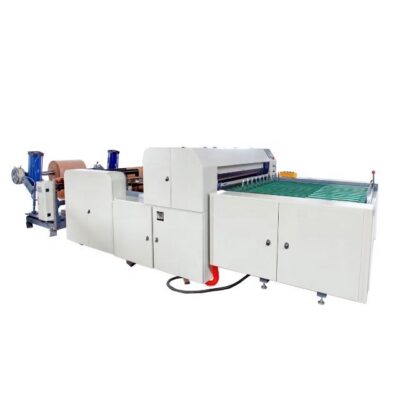

Related Machine:
film blowing machine, printing machine, slitting machine, recycling machine
Package and Delivery:
What Does the Customer Say:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1) What’s the product that needs to be cut (film, paper, non-woven, etc.)
2) What’s the diameter of the rolling material?
3) What’s the cutting length?
4) How much speed do your product need?
5) What’s the maximum and minimum dimensions including the thickness?
