Flexo Printing Machine for Polyester Satin Ribbons Tapes Fabric Label
More video check here !

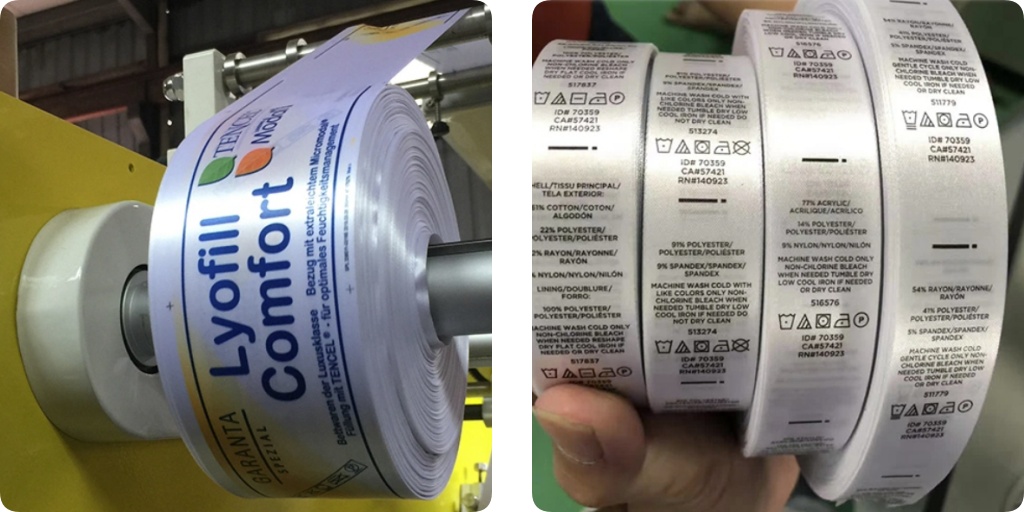

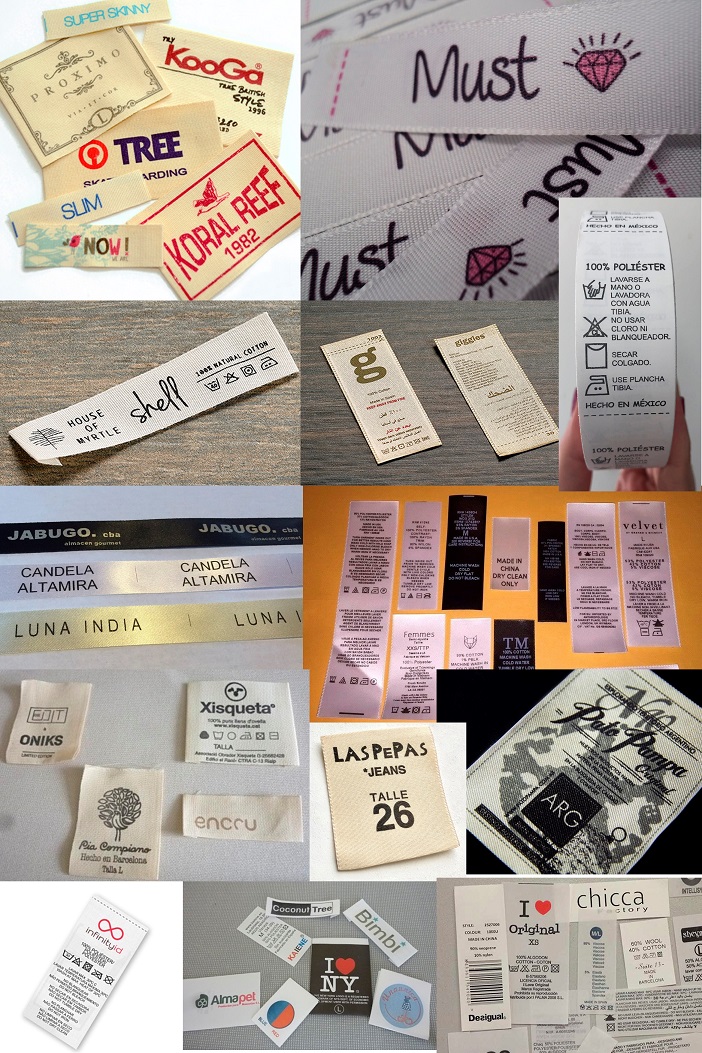

Sample Pictures:
     Â
Main Features:
1. The printing mechanism of this series is that ink will be evenly spread-out on the ink-rollers at first, from the ink-rollers, the ink transfers to the printing cylinder.
2. The flexo photopolymer plate will collect the ink and press directly on the surface of the materials.
3. The label will go through the drying process to complete the whole printing procedures.
4. The printed label can reach the result of higher strong washing fastness by heating inside the Automatic Temperature Controlled Oven between 3-8 hours.
5. Strong colorfastness to wash and polish,perfect color registration,stability the different printing cylinders.
6. Printing front 2 colors, back 1 colors, color and lustre is bright beautiful for better result,and printing black and better white.
7. It is used for flexo label printing in polyester satin ribbons,cotton tape ,woven label, nylon tape, paper tape and cloth tape.
Details: customized is available

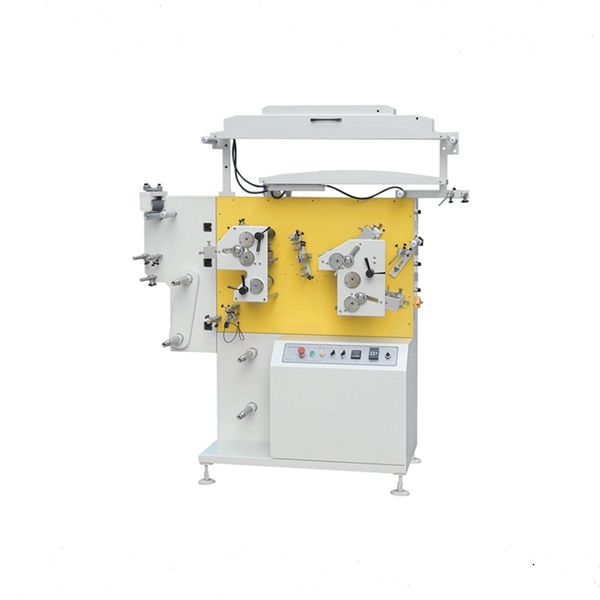

    2+1 3 Color Flexo Printing Machine For Polyester Satin Ribbons Tapes Fabric Label

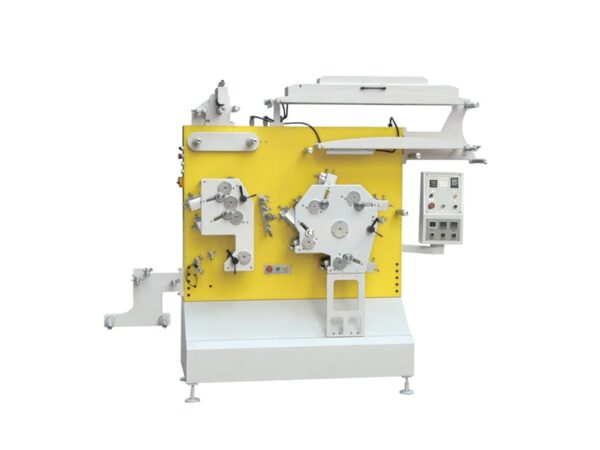

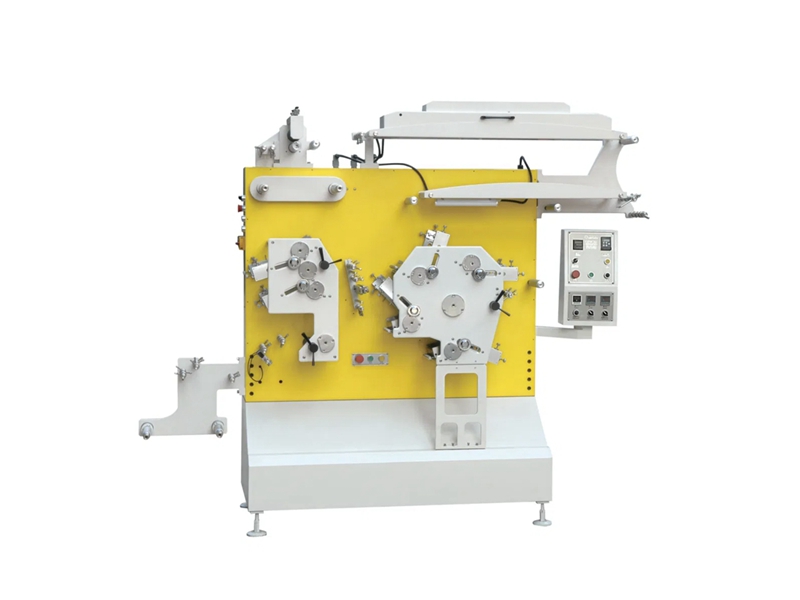

    4+2 6 Color Flexo Printing Machine For Polyester Satin Ribbons Tapes Fabric Label

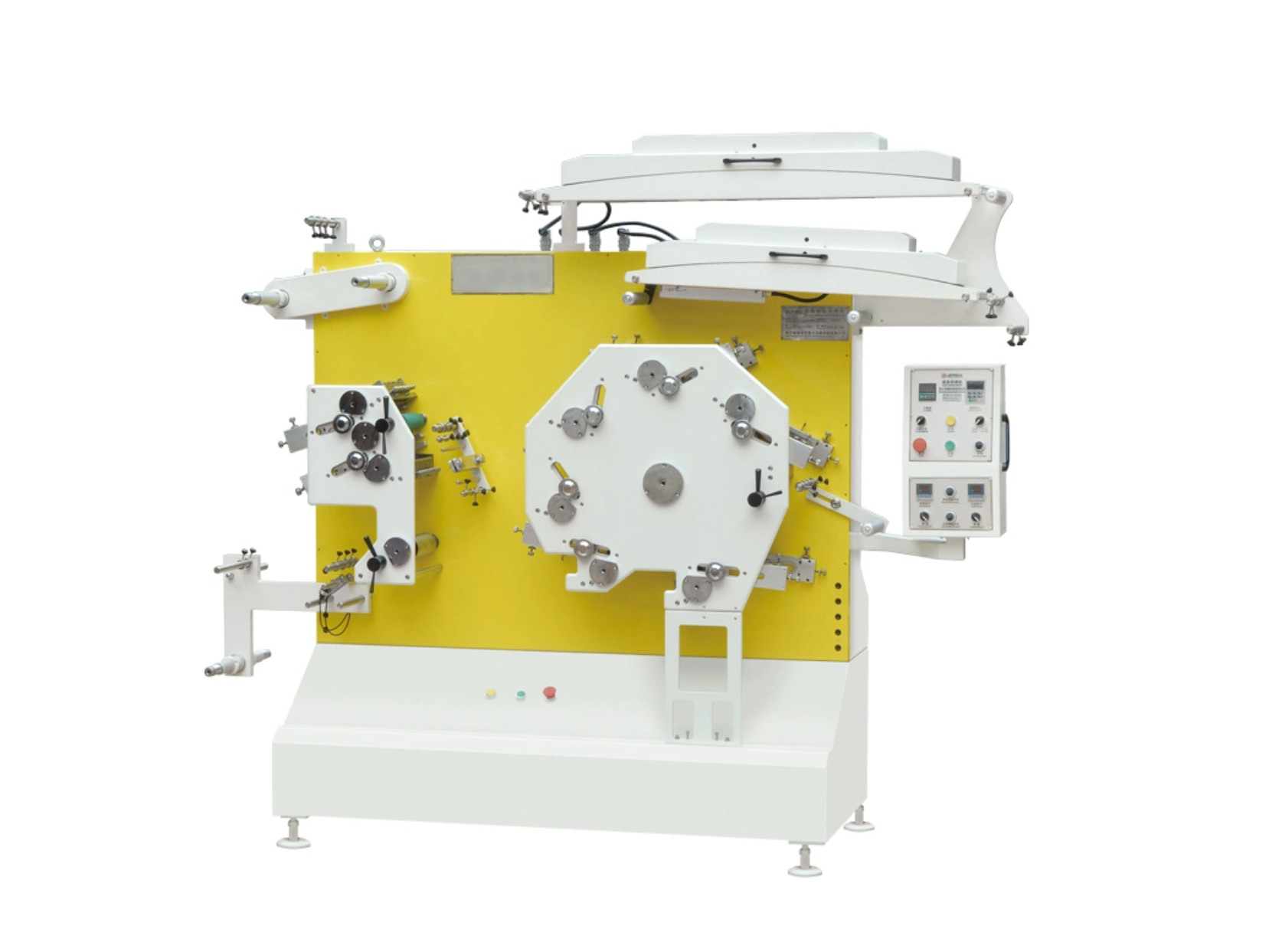

    6+2 8 Color Flexo Printing Machine For Polyester Satin Ribbons Tapes Fabric Label
Drying System:
Front side includes heater plate and infrared lamp drying.
Back side is heater plate drying.
Use for ink: Flexo Printing Ink
Printing Plate: Flexo Plate (1.7mm thickness )
Package: Plywood Wooden Case Packing
Main Technical Parameters:
| 2 Colors | 3 Colors | 4 Colors | 5 Colors | 6 Colors | 7 Colors | 8 Colors | |
| Single Side | JR-1520 | ||||||
| Double Sides | JR-1521 | JR-1531 | JR-1541 | JR-1551 | JR-1561 | JR-1562 | |
| JR-1532 | JR-1542 | JR-1552 | |||||
| Printing Area |
108 – 401mm (JR-1560 , JR-1561, JR-1562:300.8mm) |
||||||
| Max. Width |
155mm |
||||||
| Max. Speed |
60m/min |
||||||
| Available Fabric |
Satin, nylon, cotton, woven tape, sticker and roll paper  For printing sticker, independent re-winder and dryer are necessary, thickness within 1mm |
||||||
| Power |
AC：220V 50Hz/60Hz |
||||||
| Output | 4.7KW | 6.2KW | |||||
| Dimension
（LxWxH）mm |
1100x650x1700 | 1600x700x1900 | 1800x700x1900 | 1800x700x1900 | 2100x900x2000 | ||
| Weight(KG) | 700 kg | 750 kg | 770 kg | 1000 kg | 1200 kg | 1200 kg | |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
2 color flexo printing machine, 4 color flexo printing machine, four colour flexo printing machine, 6 color flexo printing machine, 8 color flexo printing machine, small flexo printing machine, stack flexo printing machine, stack type flexo printing machine, flexo printing machine, label flexo printing machine, flexo printing machine price, flexo printing machine manufacturers, flexo printing machine china, uv flexo printing machine,
Brand we work with:
Production Process:
Package and Delivery:

What Does the Customer Say:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1)The photo of printing sample.
2)What material to print for?
3)How many color does your product need?
4)How much of your material width?
5)How much the maximum diameter and weight of roll material?
