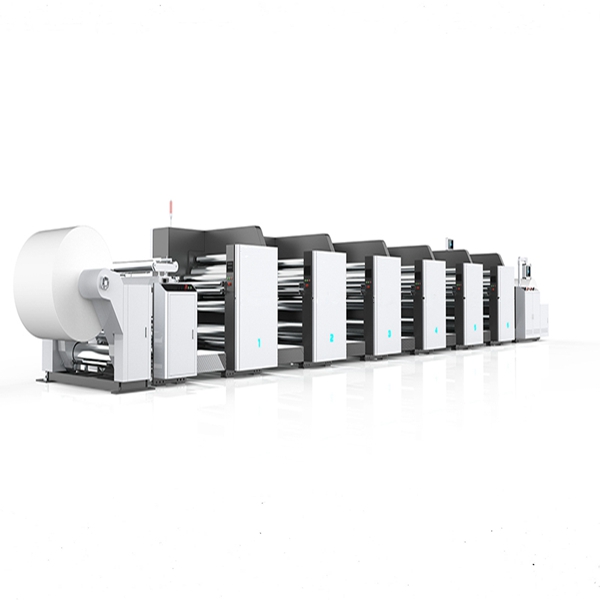

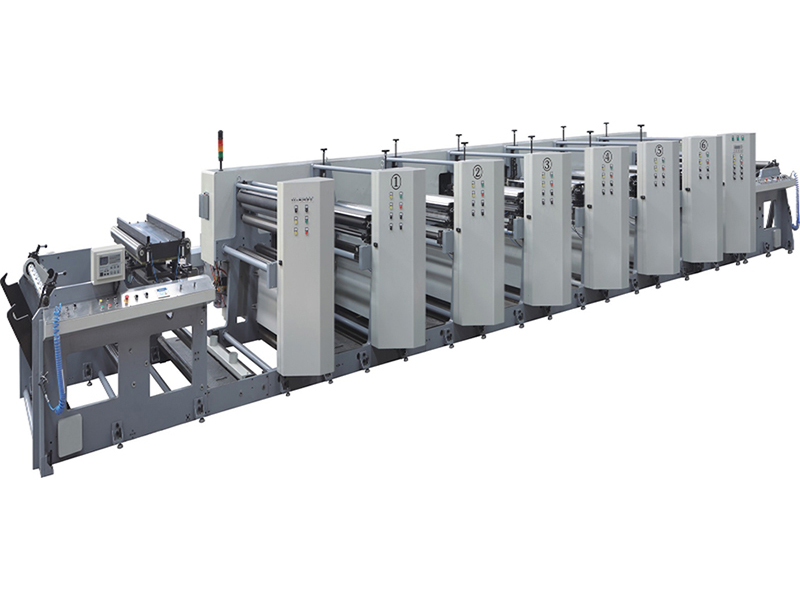

6 Colour Inline Flexo Printing Machine Price Online Unit Type
More video check here !
Sample Pictures:
Main Features:
1. Ultra-short distance from feeding to receiving.
2. The self-developed special scraper makes up for the high-speed flying ink and reduces the volatilization of the solvent in the air.
3. Repeated printing length 300~1000 mm.

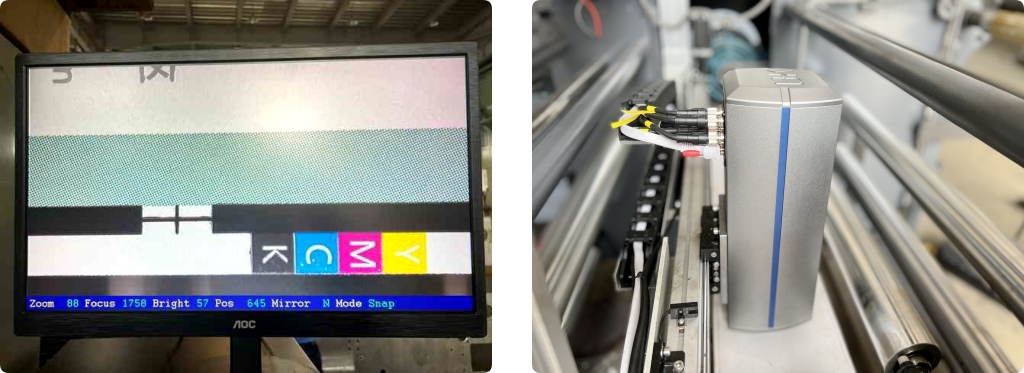

4. Adopt manual color registration, accurate color registration and stable printing.
5. Infrared drying design. Avoid rubbing when ink is not dry easily.
6. 1 color to 12 colors can be customized according to your need.
Details: customized is available

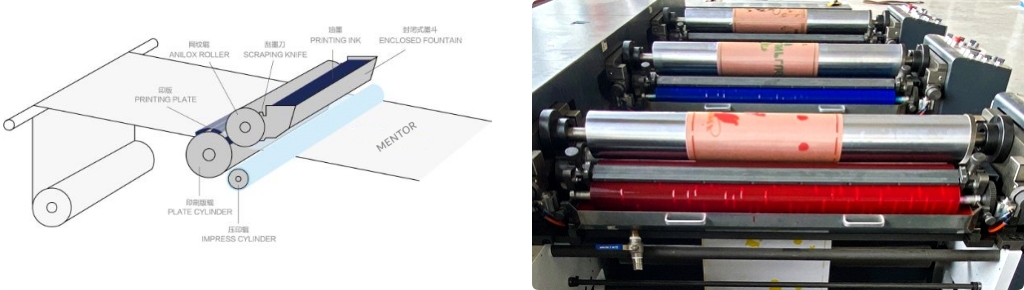

Schematic Diagram:

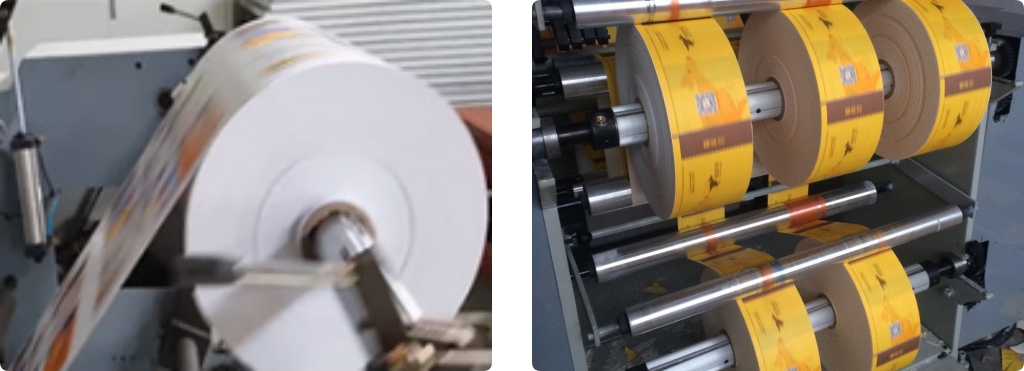

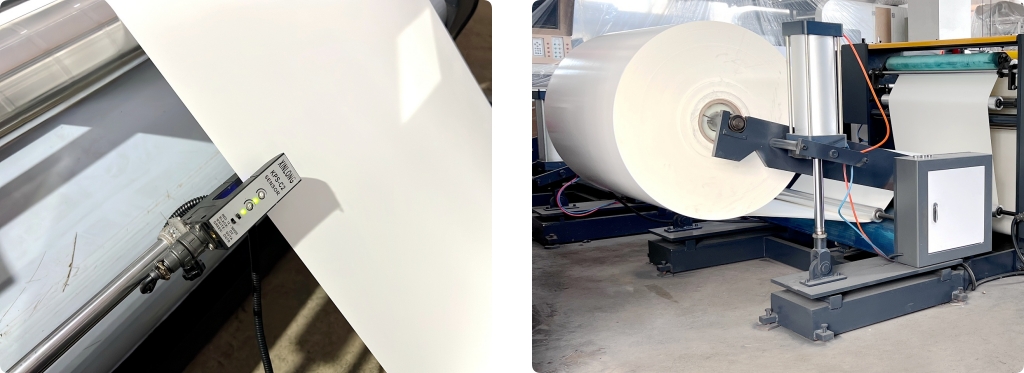

Unwind Unit:
Printing Unit:

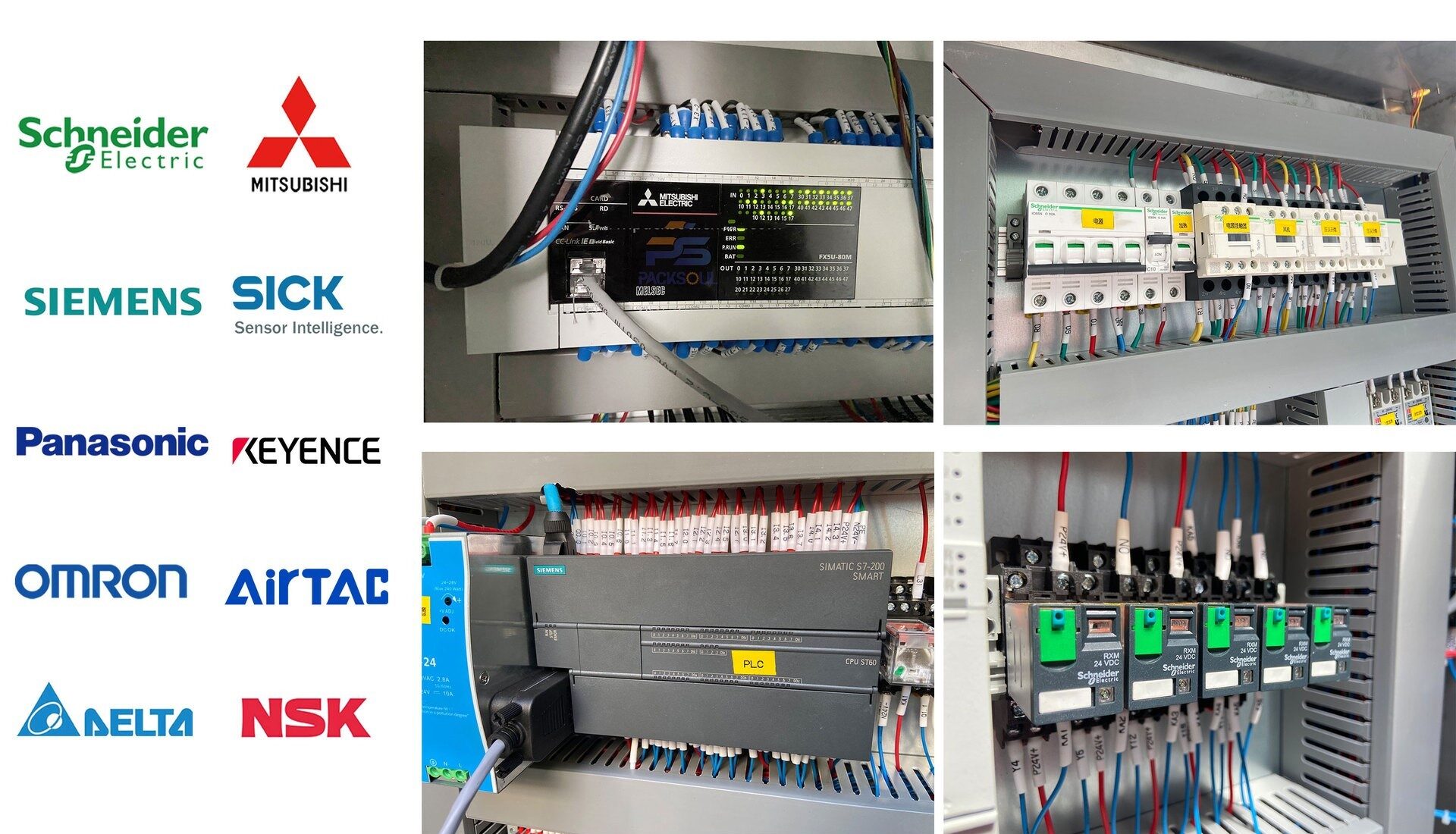

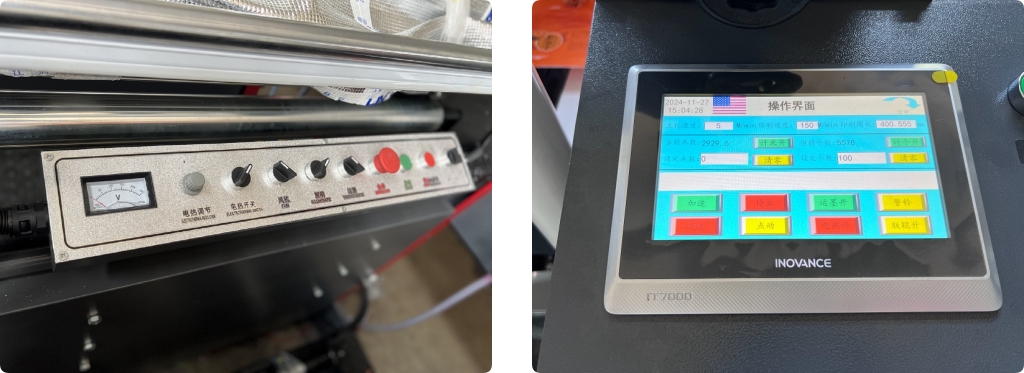

Electrical Control Parts:

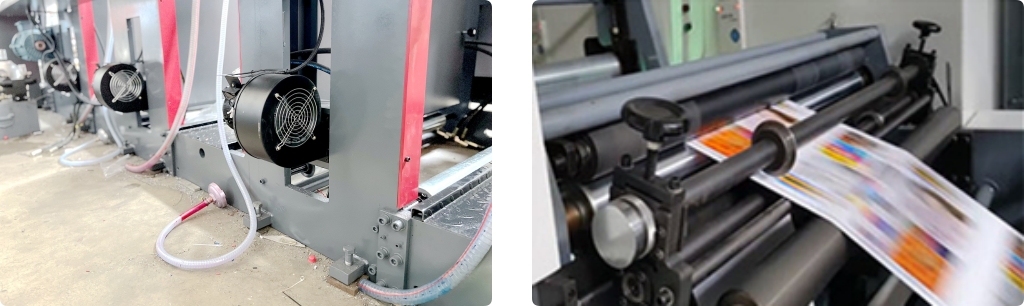

Heating & Optional Slitting Unit:

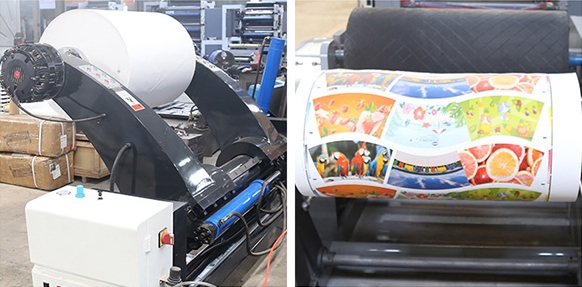

Rewind Unit: double rewinder, slitting unit, shaft-less load, surface friction rewind is optional
Main Technical Parameters:
| 1 | Printing color | 1 color to 6 colors |
| 2 | Type of printing | flexo printing in-line unit type |
| 3 | Suitable material | roll paper |
| 4 | Material feeding width | 850mm / 1050mm / 1350mm / 1650mm… (according to your material) |
| 5 | Max. printing width | 810mm / 1010mm / 1310mm / 1510mm… |
| 6 | Max. material width | 850mm / 1050mm / 1350mm / 1650mm… |
| 7 | Printing length | 300 ~ 1000mm (customized is available) |
| 8 | Machine speed | 150 m/min |
| 9 | Printing speed | 10~150 m/min (depending on the specific material, ink) |
| 10 | Plate thickness | 1.7mm / 2.84mm / 2.28mm / 3.94mm (customized is available) |
| 11 | Suitable Ink | Water based ink / Solvent based ink |
| 12 | Press power | Mechanic control |
| 13 | Matching method | Pneumatic clutch matching |
| 14 | Anilxo roller | Ceramic anilox roller, 6 pcs |
| 15 | Register precision | Longitude：±0.15mm
Transverse：±0.15mm |
| 16 | Max. Diameter of unwind | Φ1200mm (customized is available) |
| 17 | Max. Diameter of rewind | Φ1200 mm (customized is available) |
| 18 | Tension system | Full automatic tension controller, 2 PC |
| 19 | Rewind and Unwind web cylinder | core 3 inches |
| 20 | Drying source | Infrared drying |
| 21 | Oven temperature range | 10~100℃ |
| 22 | Traction way | pneumatic pressure roller |
| 23 | Power Supply voltage | 3 phase 380V，50Hz (customized is available) |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
| Auto hydraulic loading for unwinding | Big roller friction rewinding type |
| Slitting unit | Double rewind system |
| Chamber doctor blade | Ink viscosity controller |
| Sleeve roller | Anti color device |
| Servo motor controller for pressure regulation | UV and bronzing device |
| Plate mounting machine | Anilox roller cleaning machine |
6 color flexo printing machine, six color flexo printing machine, 6 colour flexo printing machine price, flexo printing machine, flexo printing machine manufacturers, flexo printing machine price, flexo printing machine china, flexo paper printing machine, flexo printing machine for paper cup, paper flexo printing machine, wrapping paper printing machine, paper printing machine, in-line flexo printing machine, inline flexo printing machine, label flexo printing machine, flexo label printing machine,
Brand we work with:
Production Process:

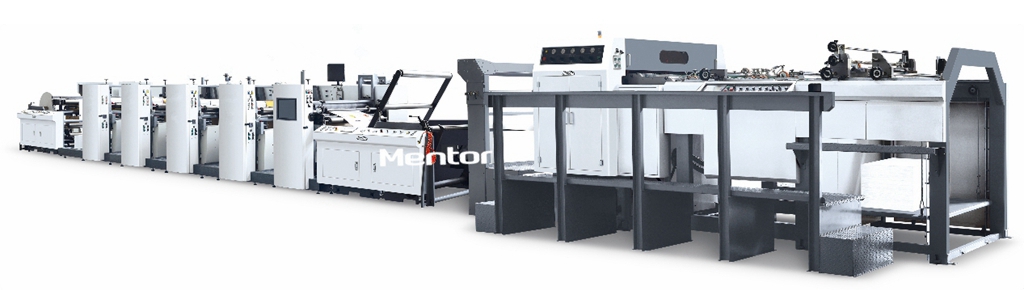

printing inline with sheet cutting machine is available
sheet cutting machine, check here

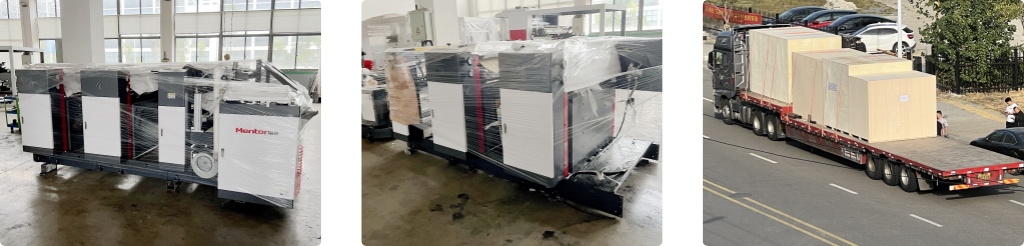

Package and Delivery:
What Does the Customer Say:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1)The photo of printing sample.
2)What material to print for?
3)How many color does your product need?
4)How much of your material width?
5)How much the maximum diameter and weight of roll material?
