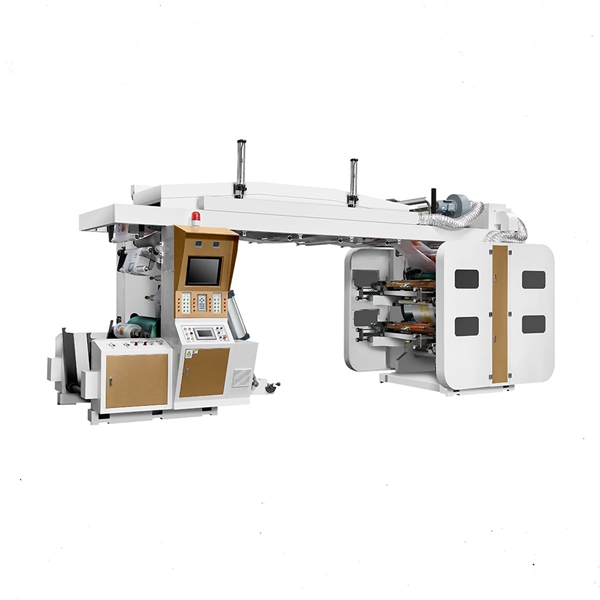

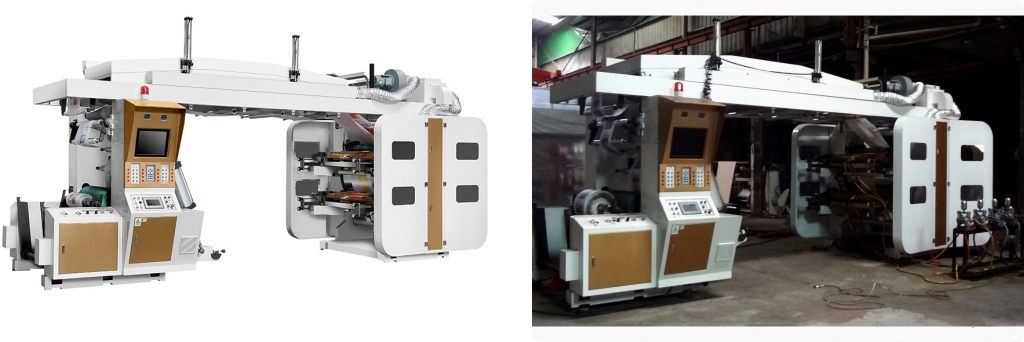

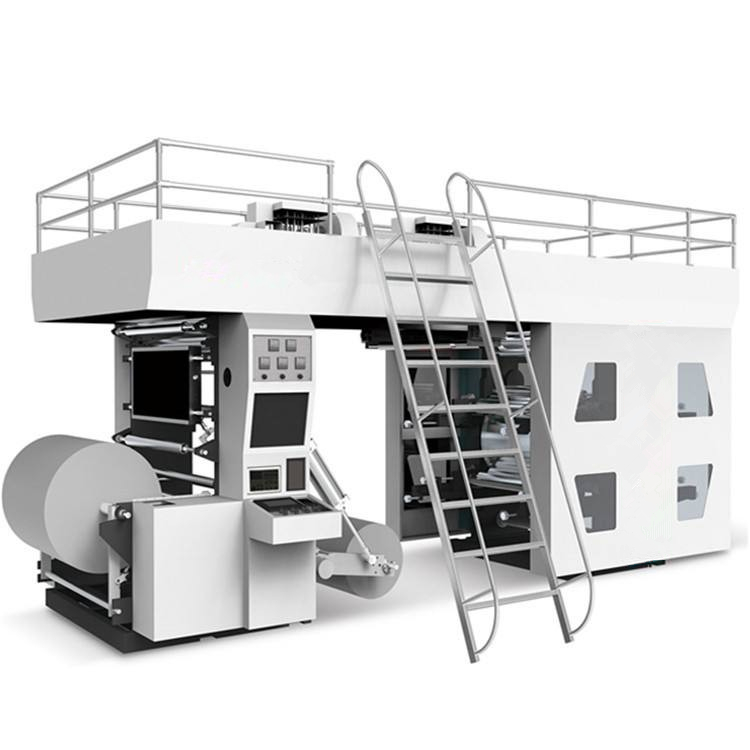

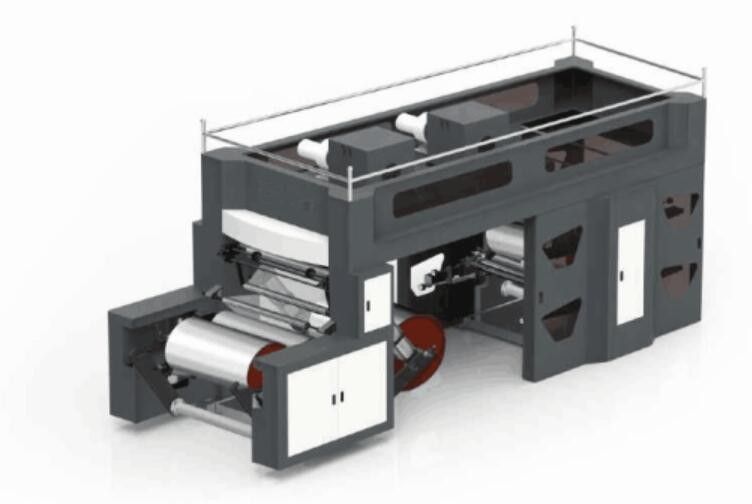

4 Four Colour CI Flexo Printing Machine Central Drum High Speed
More video check here !
Sample Pictures:
Main Features:

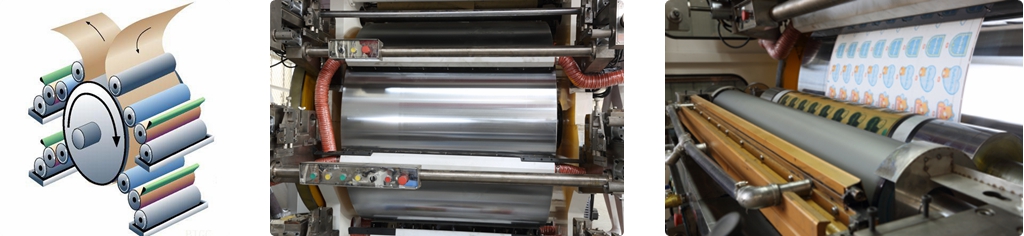

1. Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.
2. All colors printing station drives by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.
3. Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4. The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.
5. The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6. Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7. Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8. Accurate printing effect achieved by special gear transmission device.
The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
Details: customized is available

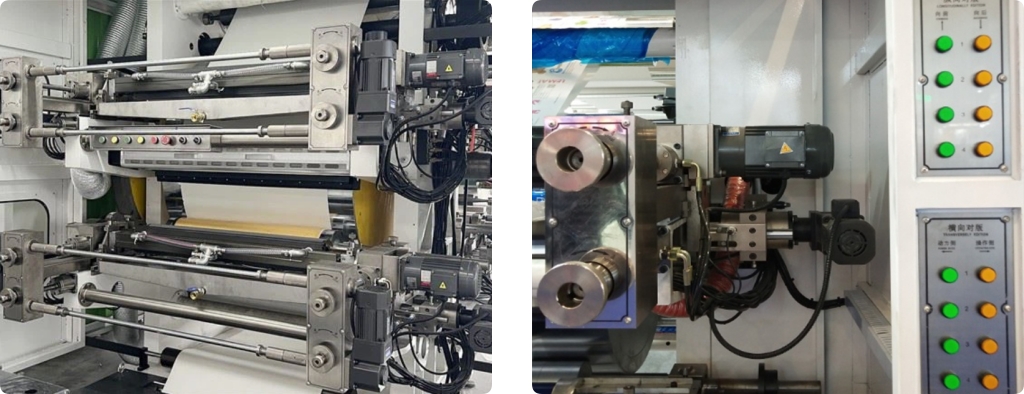

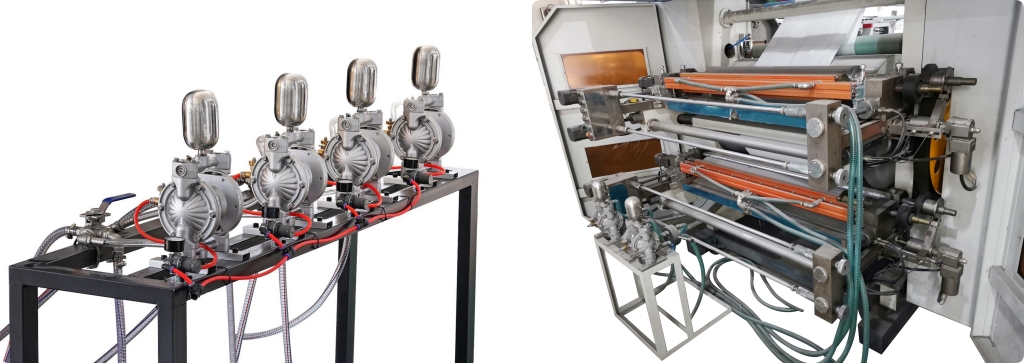

Printing Unit:

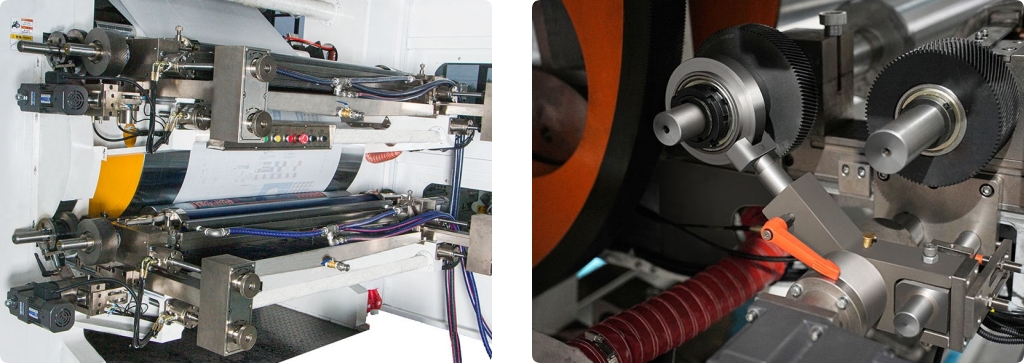

Unwind & Rewind Unit: double rewinder, pneumatic load, surface friction rewinder, corona treatment is optional

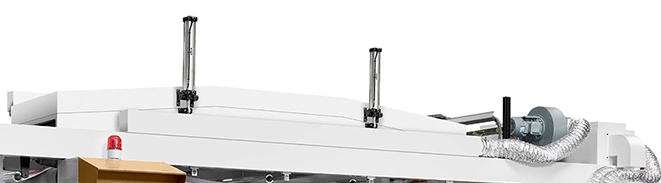

Drying Unit:
Material After Printing Finished:
Main Technical Parameters:
| 1 | Printing color | 1 color to 4 colors |
| 2 | Type of printing | flexo printing ci type |
| 3 | Suitable material | roll paper, roll film BOPP / OPP / PE / HDPE / LDPE / PVC, roll non woven fabric, roll aluminum foil |
| 4 | Material feeding width | 600mm / 800mm / 1000mm / 1200mm … (according to your material) |
| 5 | Max. material width | 600mm / 800mm / 1000mm / 1200mm … |
| 6 | Max. printing width | 560mm / 760mm / 960mm / 1160mm … |
| 7 | Printing length | from 300mm up to 800mm (customized is available) |
| 8 | Maximum Machine speed | 250 m/min |
| 9 | Printing speed | 10~200 m/min (depending on the specific material, ink) |
| 10 | Plate thickness | 1.7mm / 2.28mm / 2.84mm / 3.94mm (customized is available) |
| 11 | Suitable Ink | Water based ink / Solvent based ink |
| 12 | Press power | mechanic control |
| 13 | Register adjustment method | by electric |
| 14 | Register precision | Longitude：±0.15mm
Transverse：±0.15mm |
| 15 | Max. Diameter of unwind | Φ1200mm (customized is available) |
| 16 | Max. Diameter of rewind | Φ1200 mm (customized is available) |
| 17 | Rewind and Unwind web cylinder | core 3 inches |
| 18 | Heating method | electricity heating |
| 19 | Oven temperature range | 10~80℃ (room temp. 20℃) |
| 20 | Power Supply voltage | 3 phase 380V，50Hz (customized is available) |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
| corona treatment | auto loading for unwind and rewind |
| double unwind | double rewind |
| crane on top | image inspection system |
| surface friction rewind |
