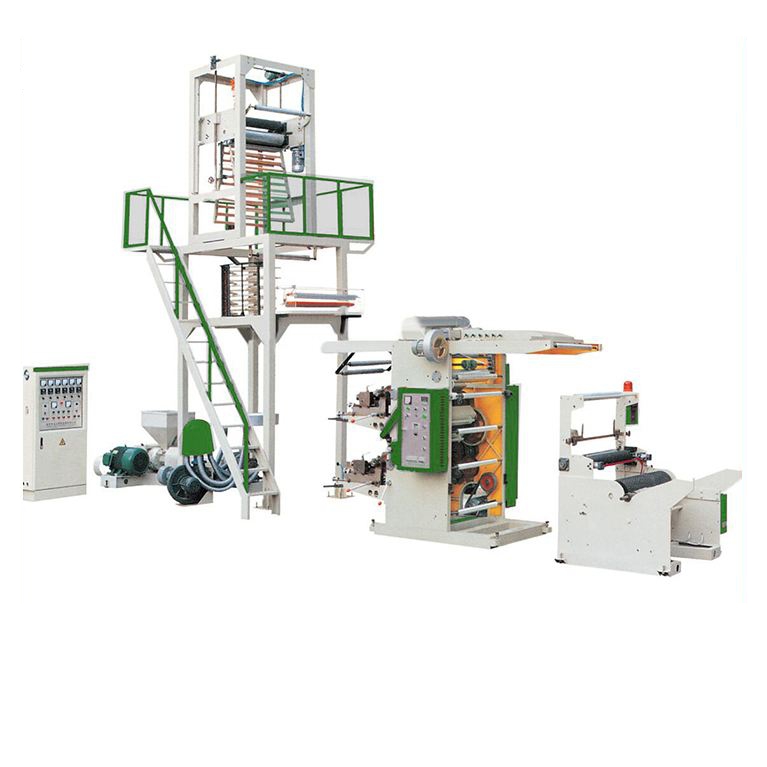

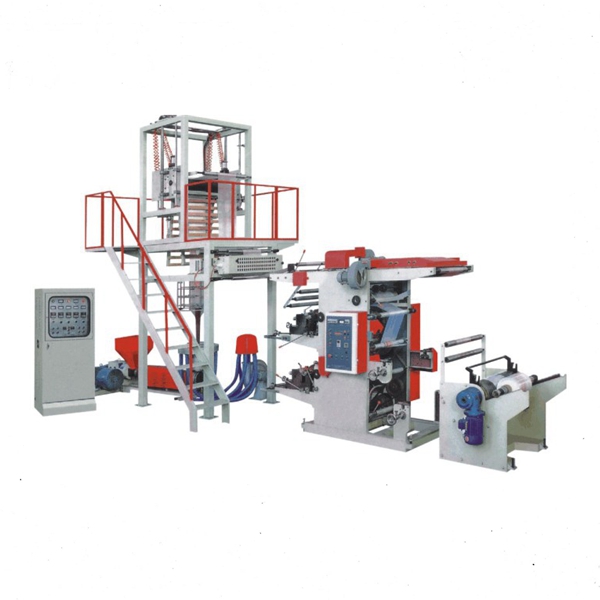

2 Colors Flexo Printing Machine Inline Film Blowing Machine Plastic Bag PE OPP PVC
More video check here !
Sample Pictures:
Main Features:
1. Printing color group may change according to customer requirements, can print both sides of the completion of a one-time continuous.
2. The host can use frequency electromagnetic.
3. Electric Smart Thermostat.
4. Single drying tunnel design, easy to wear materials.
5. 1 color to 6 colors can be customized according to your need.
6. The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
Details: customized is available
Printing Unit:
Main Technical Parameters:
| Printing Machine Technical Specification | ||
| 1 | Printing color | 1 color to 2 colors |
| 2 | Type of printing | flexo printing stack type |
| 3 | Suitable material | roll plastic film BOPP / OPP / PE / HDPE / LDPE / PVC |
| 4 | Material feeding width | 600mm / 800mm / 1000mm … (according to your material) |
| 5 | Max. material width | 600mm / 800mm / 1000mm … |
| 6 | Max. printing width | 560mm / 760mm / 960mm … |
| 7 | Printing length | from 300mm up to 1000mm (customized is available) |
| 8 | Maximum Machine speed | 70 m/min |
| 9 | Printing speed | 10~50 m/min (depending on the blown film machine, raw material, ink) |
| 10 | Plate thickness | 1.7mm / 2.28mm / 2.84mm / 3.94mm (customized is available) |
| 11 | Suitable Ink | water based ink / solvent ink |
| 12 | Register adjustment method | by manual |
| 13 | Register precision | Longitude：±0.40mm
Transverse：±0.40mm |
| 14 | Heating method | electricity heating |
| 15 | Power Supply voltage | 3 phase 380V，50Hz (customized is available) |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
| Blown Film Machine Technical Specification | ||
| 1 | Suitable material | roll film BOPP / OPP / PE / HDPE / LDPE / PVC |
| 2 | Screw diameter | Φ50 / Φ55 / Φ60 |
| 3 | Width of blowing film | 600mm / 800mm / 1000mm … |
| 4 | Thickness of blowing film | 0.01 to 0.06mm |
| 5 | Screw L / D ratio | 28:1 |
| 6 | Max. die size | 80mm / 100mm / 125mm |
| 7 | Main motor power | 11mm / 15mm / 22mm |
| 8 | Max. Extrusion output | 45 / 60 / 75kgs per hour |
| 9 | Power Supply voltage | 3 phase 380V，50Hz (customized is available) |
Please note: mentor company is continuously seeking for development of products. For this reason, mentor reserves the right to supply the improved product without advance notice.
Optional (need extra cost):
Please consult the supplier for this
| unwind | rewind |
| corona treatment | doctor blade |
small flexo printing machine, in-line flexo printing machine, inline flexo printing machine, 2 color flexo printing machine, 2 color flexo printing machine price, two color flexo printing machine, 2 color flexo printing machine manufacturers, flexo printing machine, flexo printing machine manufacturers, flexo printing machine price, flexo printing machine china, label flexo printing machine, flexo label printing machine, flexo paper printing machine, paper flexo printing machine, plastic bag printing machine, polythene bag printing machine, stack type flexo printing machine, stack flexo printing machine, mini flexo printing machine, film blowing machine, blown film extruder machine, extrusion blow molding machine,
Brand we work with:

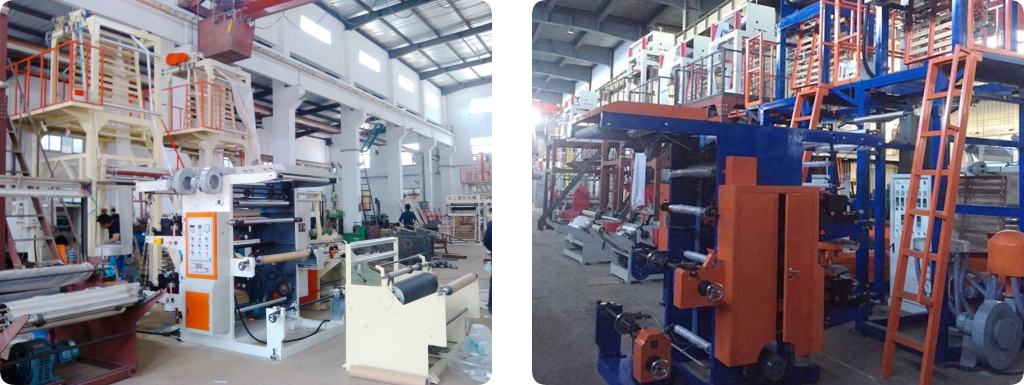

Production Process:
plastic bag making machine, check here
film blowing machine, check here
sheet cutting machine, check here

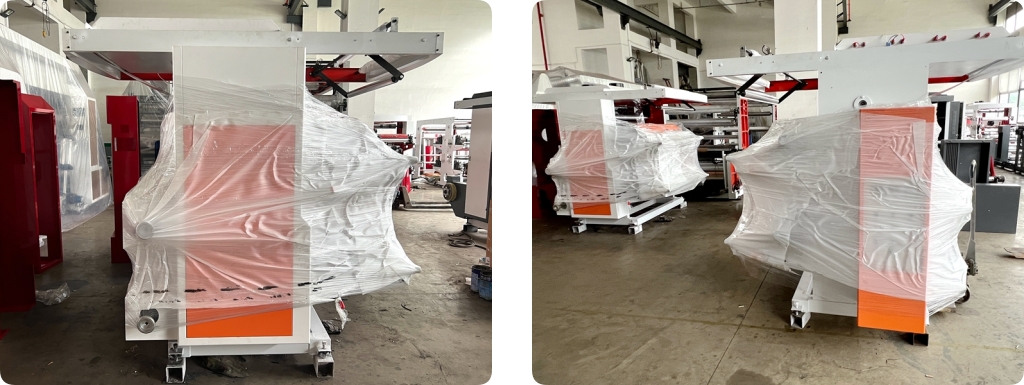

Package and Delivery:
What Does the Customer Say:
FAQ:
Q: What’s the price of machines?
A: Pls provide following information:
1)The photo of printing sample.
2)What material to print for?
3)How many color does your product need?
4)How much of your material width?
5)How much the maximum diameter and weight of roll material?
